Phoenix Cable Tower

SKU: RX3-CT-TND3-SC
$2,179.00
Shipping calculated at checkout.

California Proposition 65 Warning: This product may contain materials subject to Proposition 65. Details at P65Warnings.ca.gov

INFORMATION

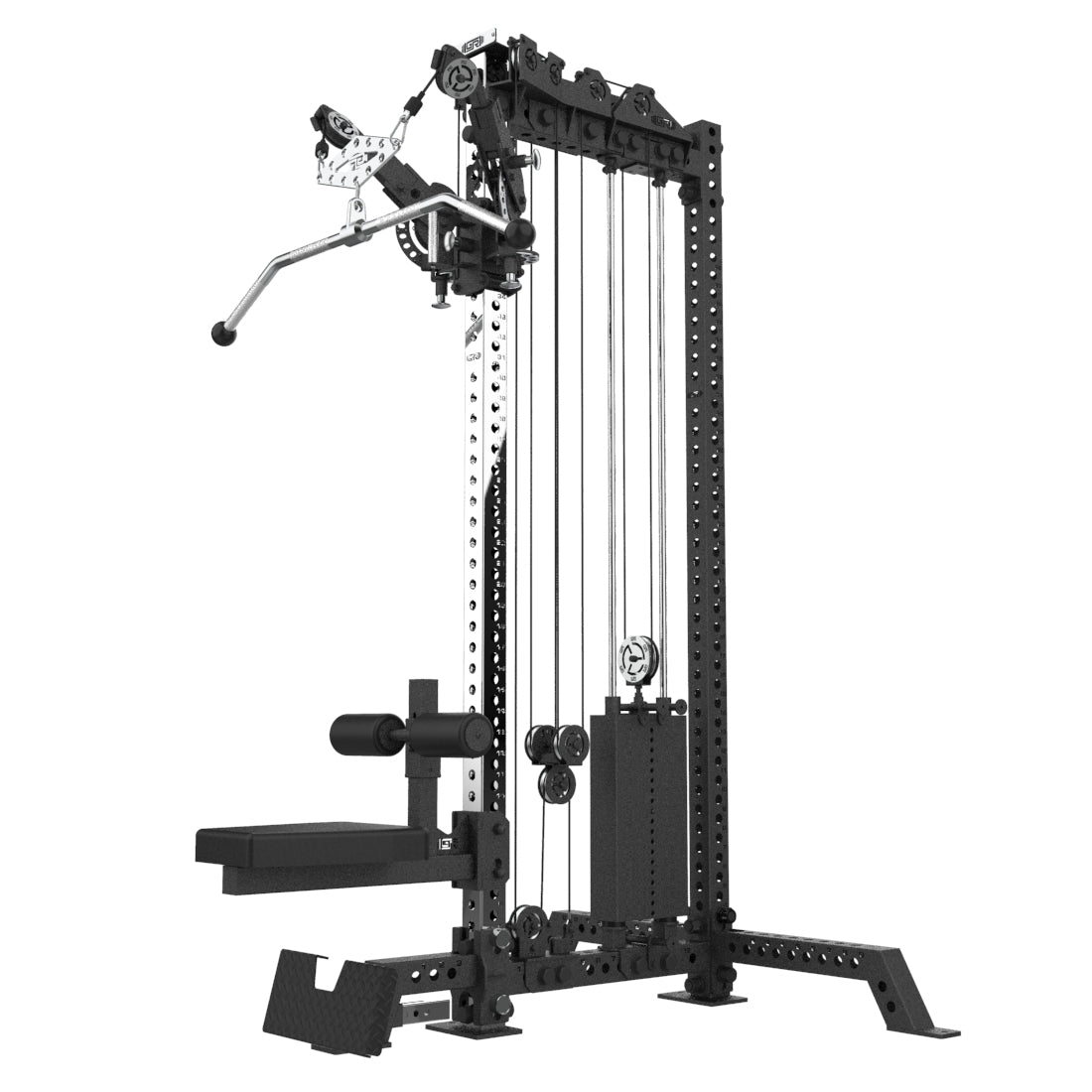

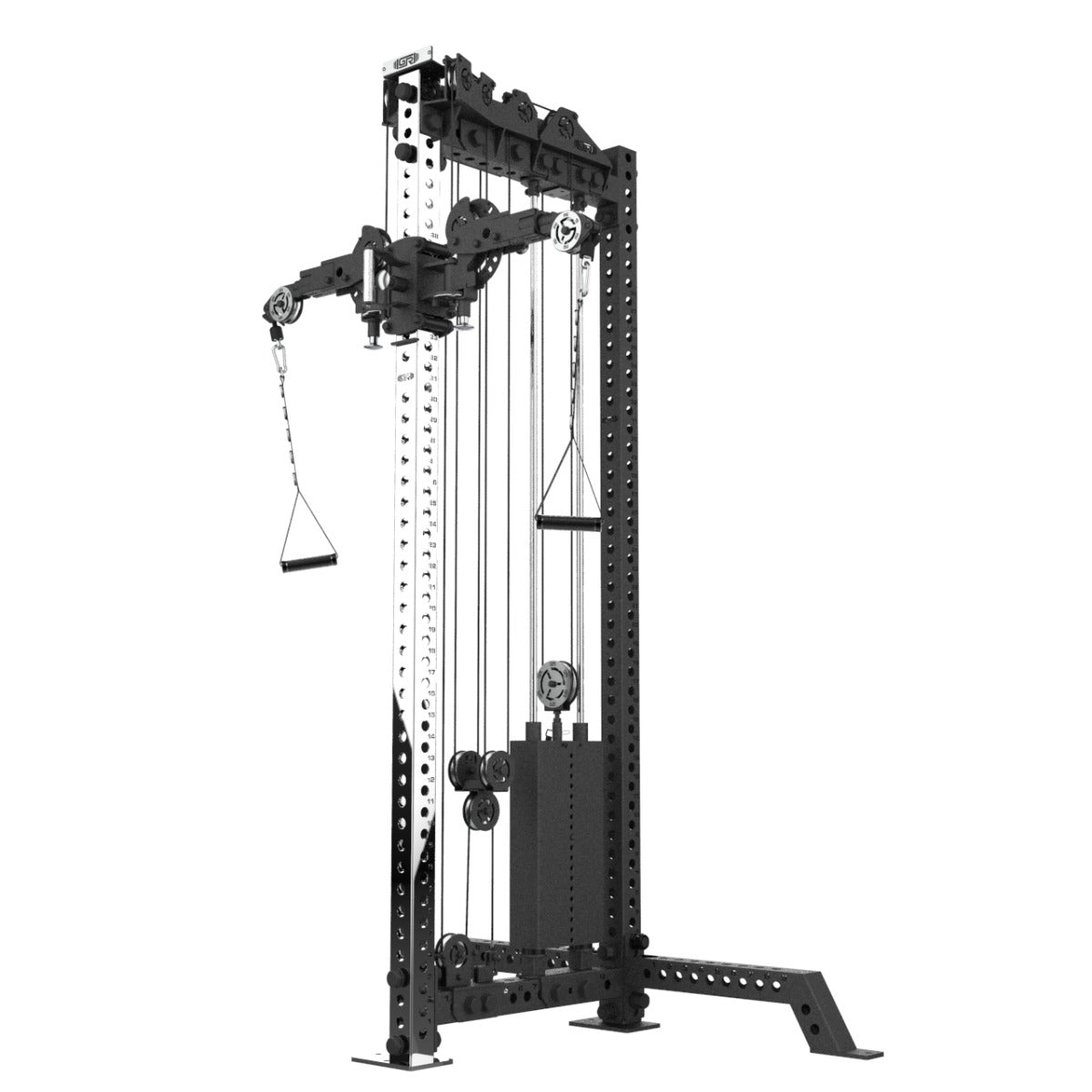

The Phoenix Cable Tower is the next evolution in compact functional trainers.
Designed with versatility and power in mind, it features Dual Tornado Arms that swivel in 4 directions with 7 angle positions, allowing for unmatched adjustability in a freestanding cable unit. Go wide for chest flys, go high for full lat stretches, or angle low for curls and rows, the movement possibilities are endless.
The Phoenix is equipped with dual handle cables offering both 1:1 and 2:1 weight ratio options, giving you the flexibility to go heavy or train with precision. Built on a modular 3”x3”, 11-gauge steel upright frame with 1” holes and 2” spacing, it’s compatible with a growing list of RX3 Attachments to expand your training potential.

Whole Cart Ships Free: Free shipping on your entire cart with purchase of this item

Description

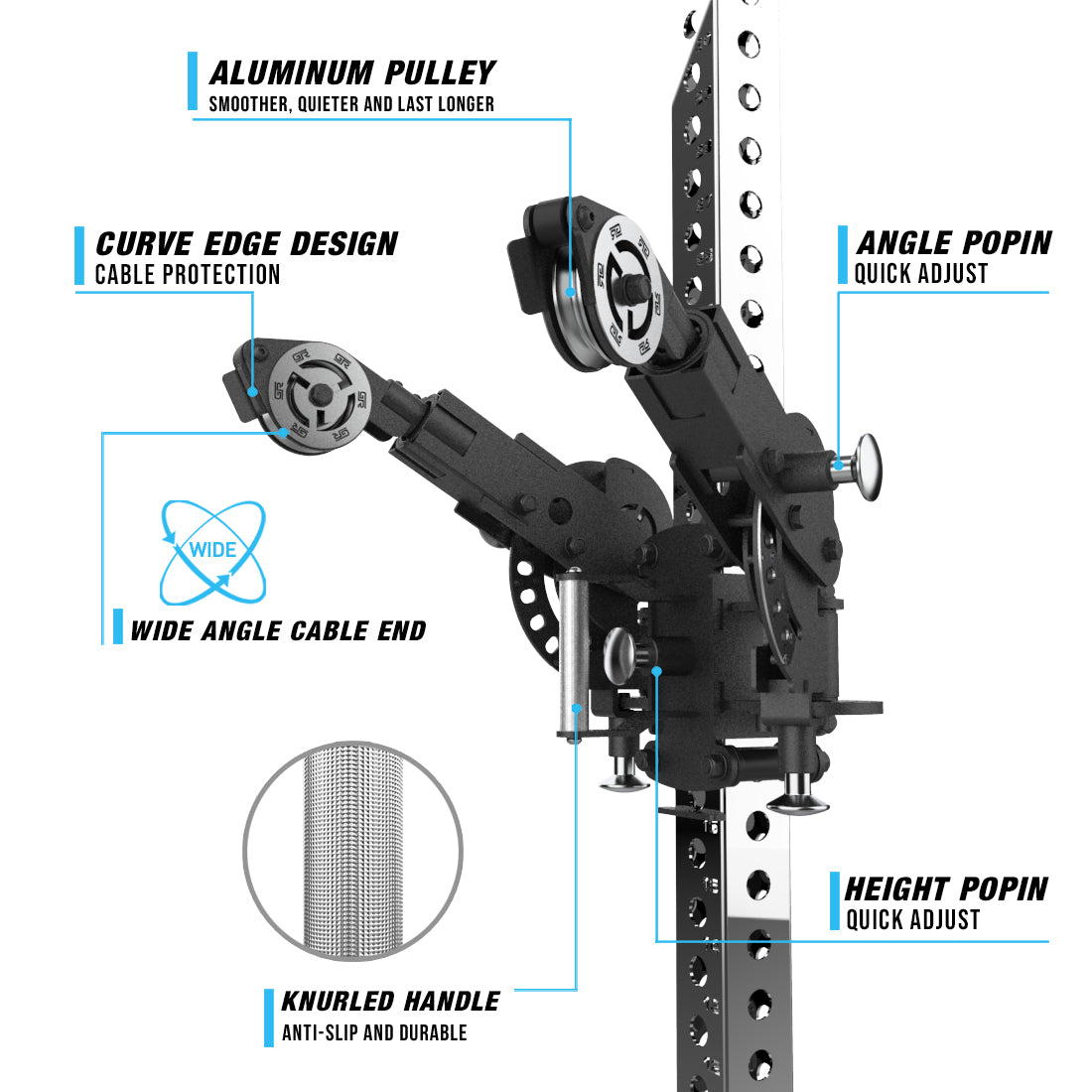

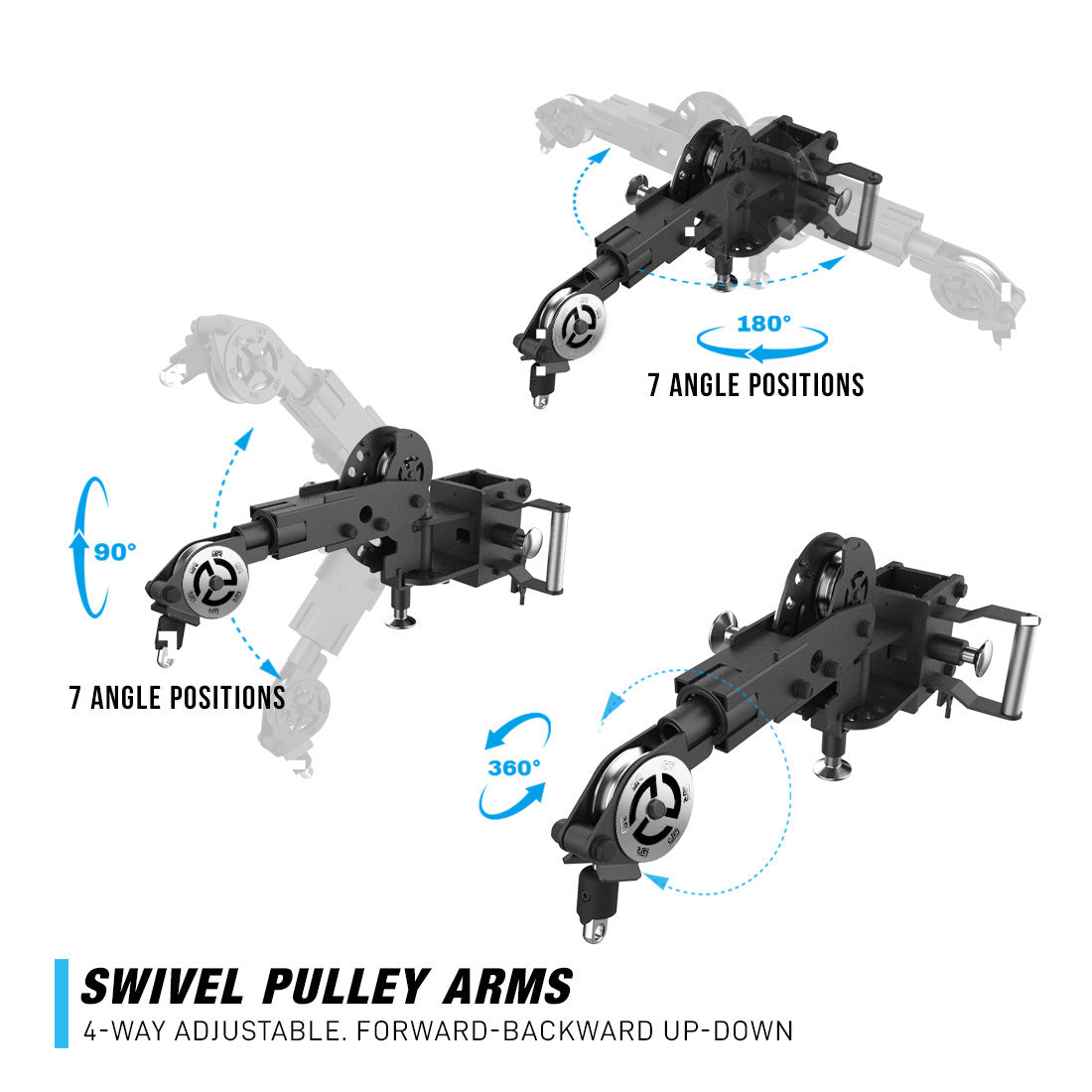

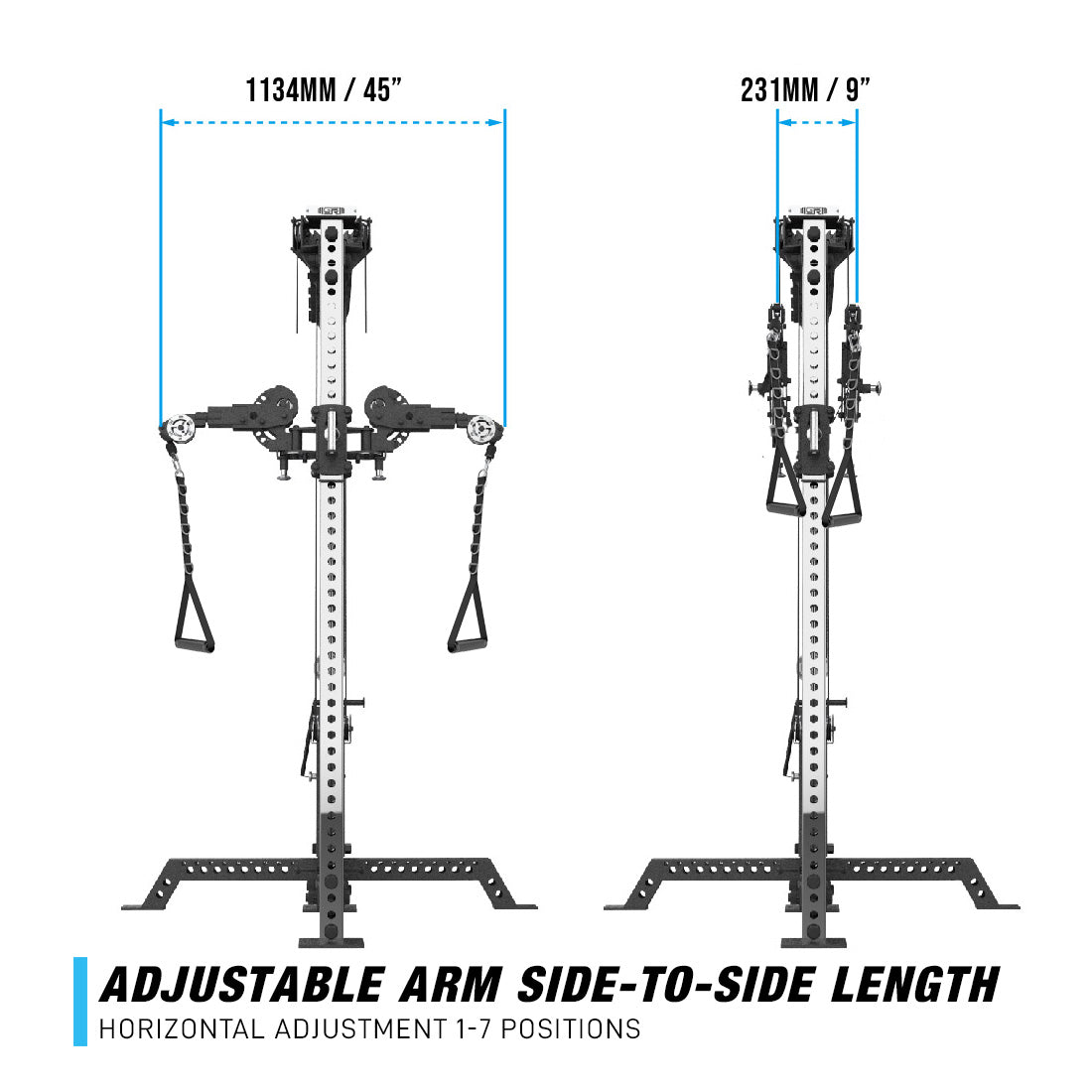

The Phoenix Cable Tower delivers all the training versatility of a full-sized functional trainer without sacrificing floor space. Its Dual Tornado Pivot Arms each rotate 180° and lock into 7 angles vertically and horizontally, giving you unmatched control over movement paths. This allows you to perform nearly any cable-based movement, from single-arm crossovers to lat pulldowns and seated rows, without compromise. With the dual-handle design, you get 1:1 ratio when using both handles and 2:1 ratio for longer travel and lighter increments on a single handle. Whether you're chasing hypertrophy or mobility, the Phoenix adapts to your training style.

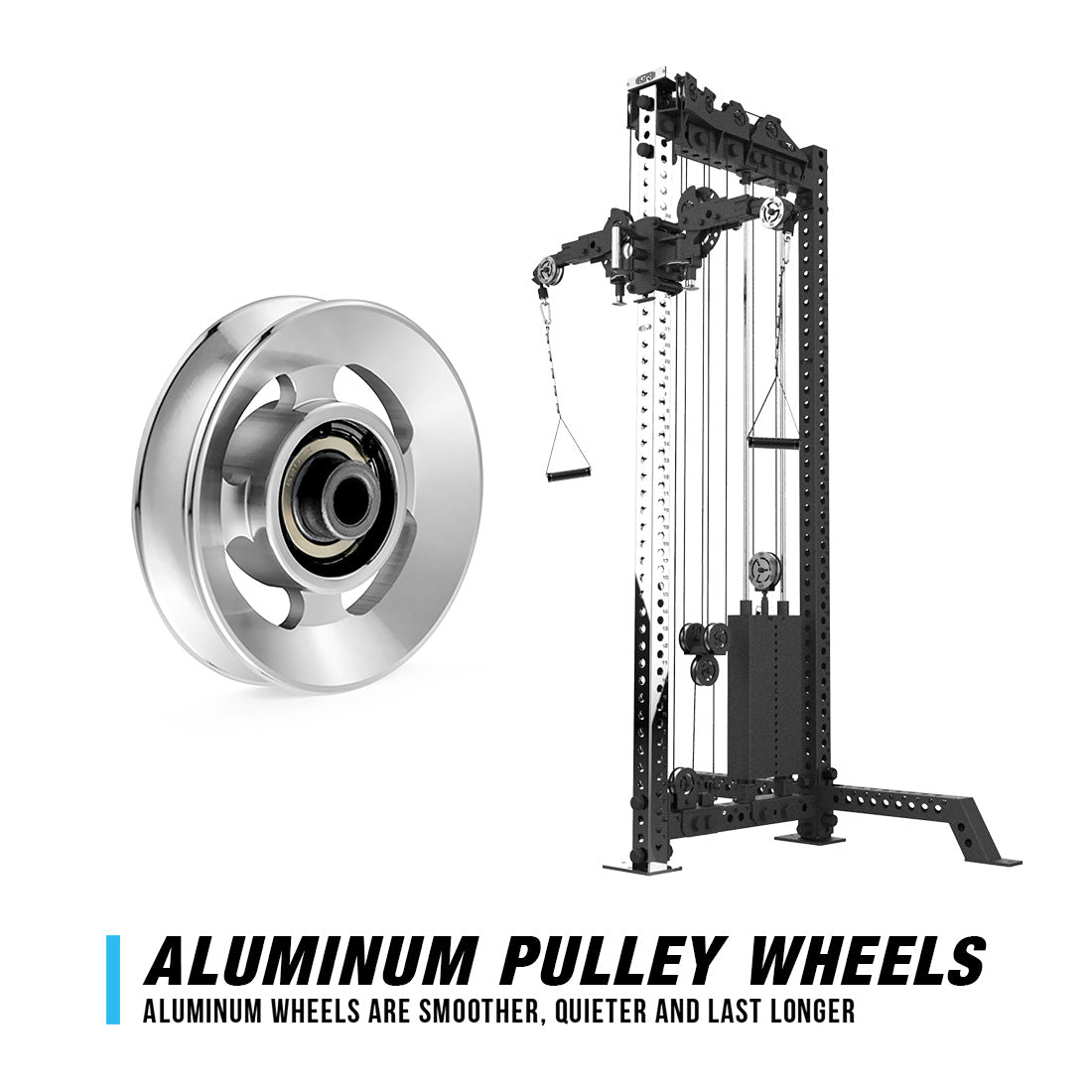

Precision-machined aluminum pulleys, knurled aluminum handles, and a magnetic aluminum weight pin selector ensure smooth performance and long-term durability.

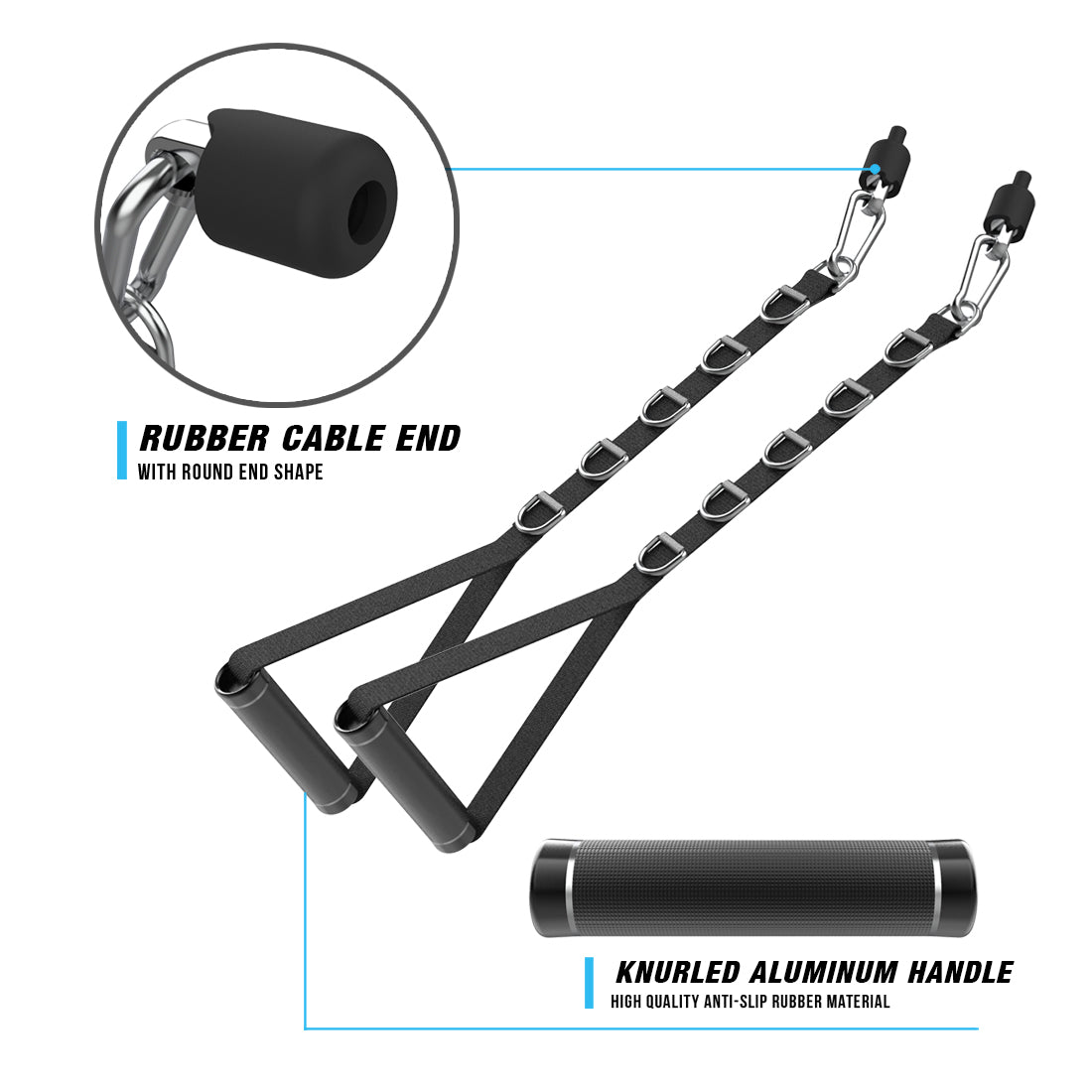

For improved range of motion during cable movements like chest flys, the Phoenix Cable Tower now includes multi-loop handles as standard. Inspired by the flexibility of a daisy chain, this handle features multiple loop positions that let you fine-tune cable length on the fly, helping taller lifters and users seeking deeper stretches achieve more natural movement and extended cable travel. By simply choosing the loop position that fits your setup, you can unlock greater ROM, smoother reps, and better positioning without needing additional accessories.

Multi-loop handles for extended cable travel

UPGRADE WITH THE PHOENIX COUNTERBALANCE

For an even smoother adjustment experience, the Phoenix Cable Tower can be paired with the optional Phoenix Counterbalance. This upgrade offsets the weight of the Dual Tornado Arm trolley, reducing the effective trolley weight by approximately 57%, from 44 lbs (20 kg) to just 19 lbs (8.5 kg).

The result is dramatically lighter adjustments, faster transitions between exercises, and in many cases, smooth one-handed repositioning of the Tornado Arms. It's a great upgrade for users who frequently change arm positions during training or for families sharing the same Phoenix setup.

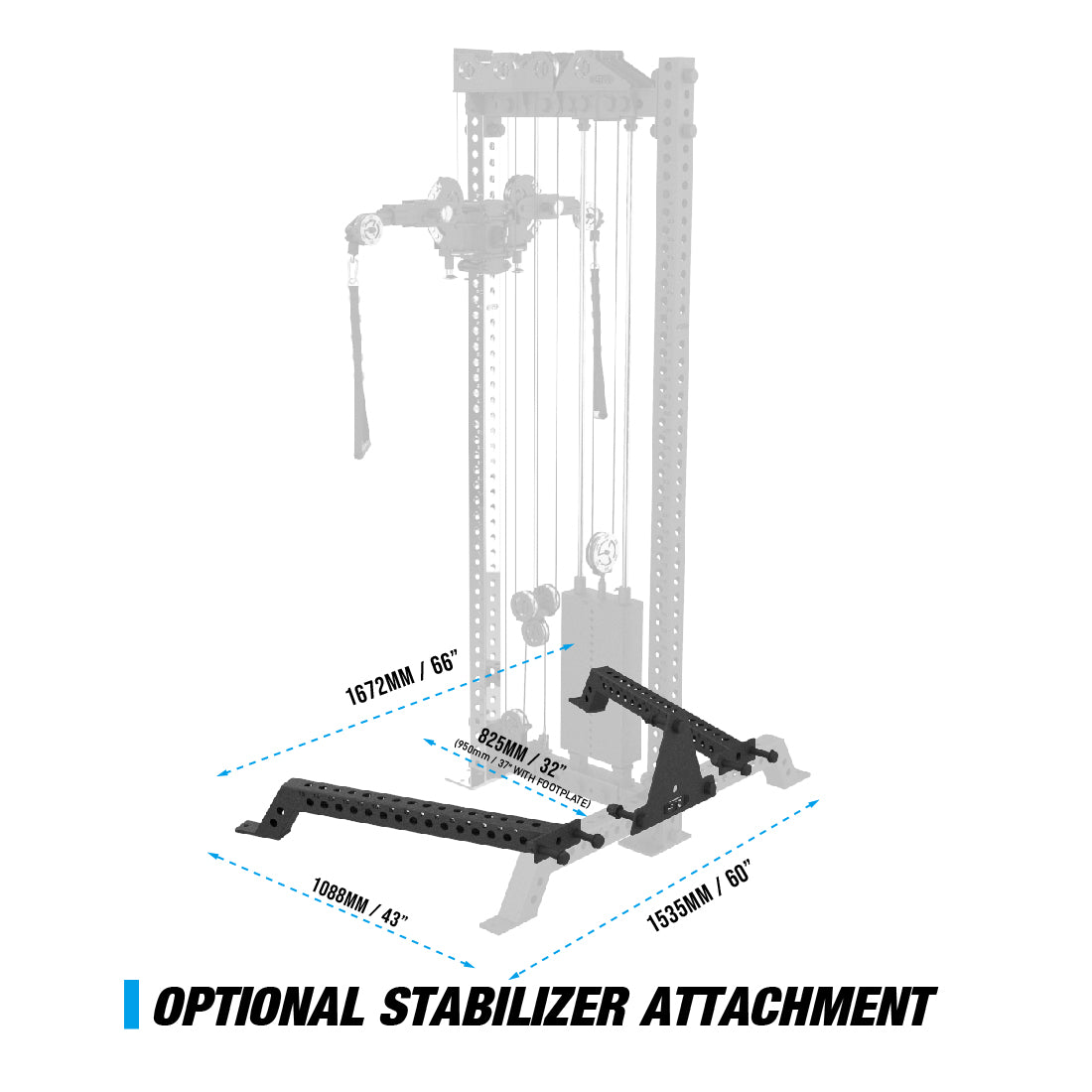

ADD STABILITY WITH THE PHOENIX FLAT STABILIZER

For users looking for additional stability, the optional Phoenix Flat Stabilizer mounts directly to the front of the Phoenix Cable Tower without increasing its side footprint. Its compact design helps keep the tower securely planted during demanding exercises such as belt squats and other low-to-high pulling movements, while preserving valuable floor space.

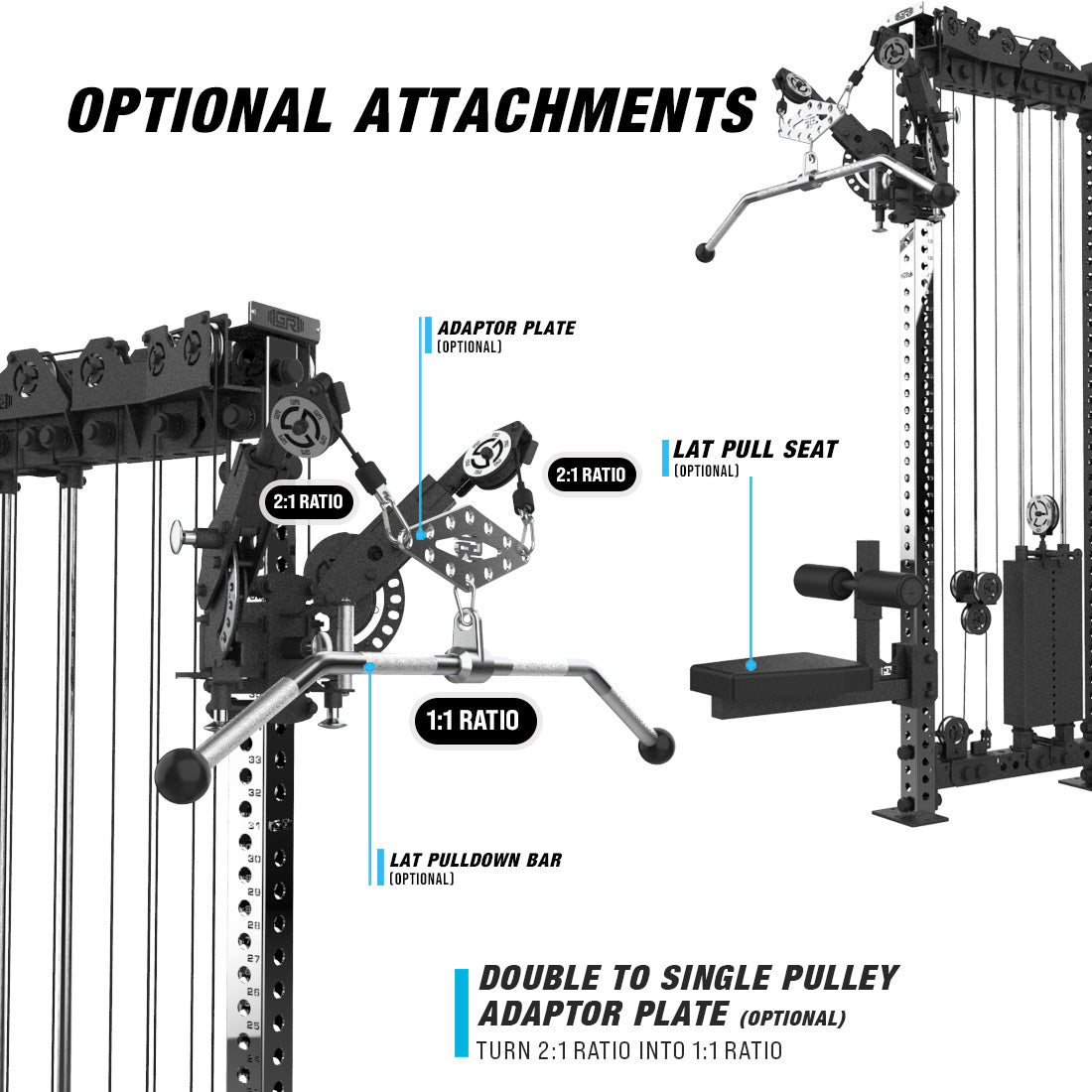

OPTIONAL ATTACHMENTS

Optional attachments like the Lat Pull/Low Row Pad combined with the Center Post allow you to extend your range of motion when doing flexion rows, while accessories like the seated row triangle with the FT Cable Output Adapter let you further customize your setup for targeted training. For users who want a space-efficient low-row setup with extended range of motion, the RX3 Adjustable Foot Plate 2.0 is also an excellent option. Its telescoping design lets you position the foot plate further away from the upright, giving you greater ROM and a strong, stable bracing point while rowing on the Phoenix Cable Tower.

RX3 SERIES DESIGN ETHOS

  • HEAVY DUTY STEEL WITH MODULAR DESIGN

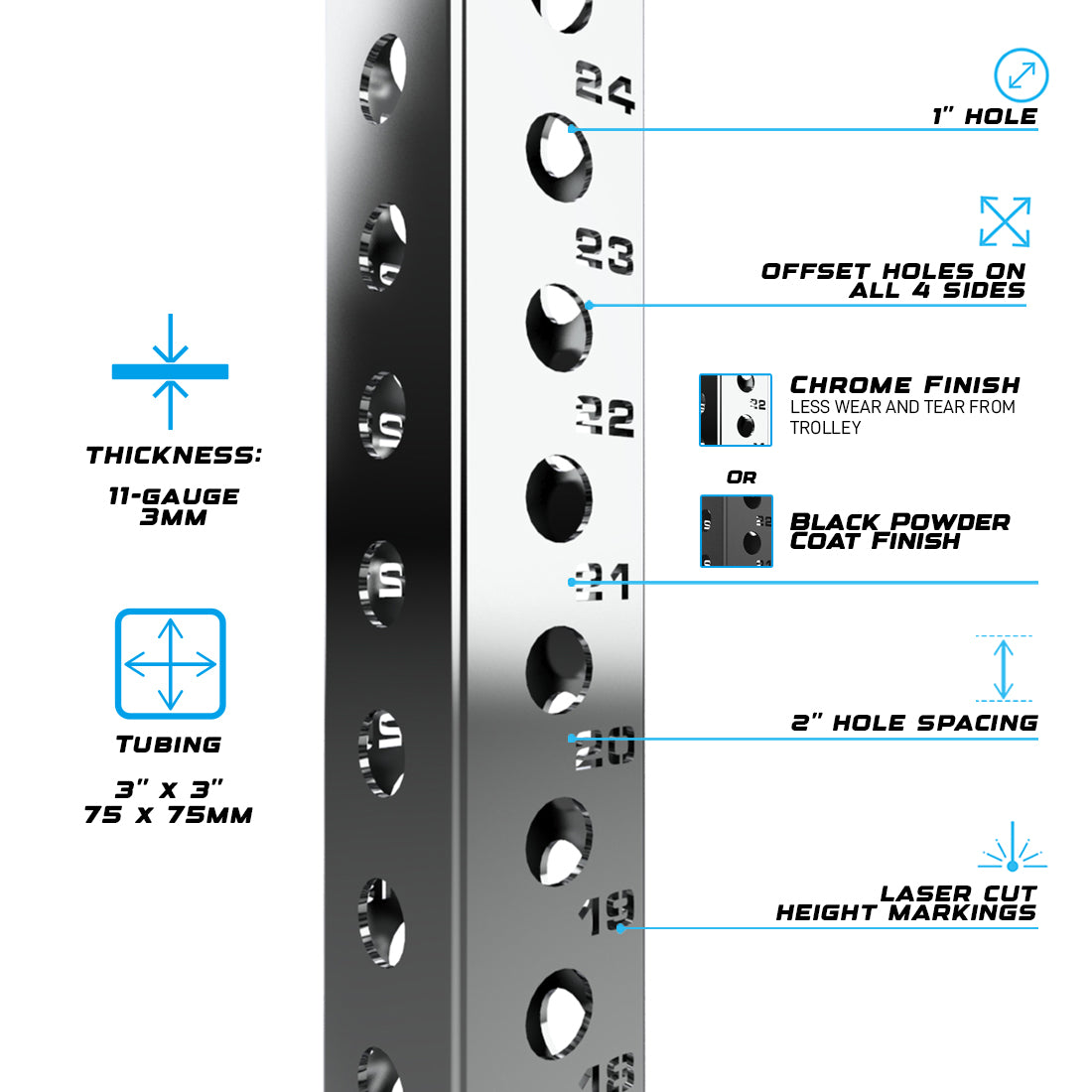

    Lift confidently and safely from 3" x 3" 11-gauge steel with 1400+ LB weight capacity. Our fully modular design features offset, 1" holes with 2" spacing on all 4 sides

  • DURABLE COATINGS AND HARDWARE

    Our 1" hardware is coated with black e-coat which is more resistant to corrosion, more durable, and looks very sleek because who doesn't love black hardware? All attachments and hardware utilize 1" pins at 2" spacing to create a fully modular and extremely versatile rack.

  • EFFICIENT ACCESSORY MOUNTING

    Laser-cut numbering for each of our offset 1" holes with 2" spacing on uprights, cross bars, and accessories.

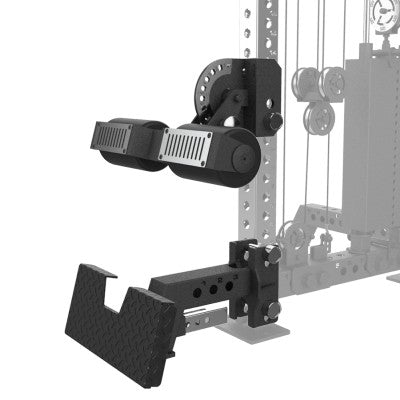

  • Attachment Design

    All RX3 attachments are made with a rounded chrome pin making insertion into the uprights easy and frictionless. The rounded chrome pin as well as the uprights will maintain their new appearance, even after years of repeatedly inserting and removing attachments. Other companies use a powder-coated pin that scratches and chips away on both the pin itself as well as the coating on the upright. Further, the inside of all RX3 attachments are lined with protective padding made from durable materials to prevent metal-to-metal contact.

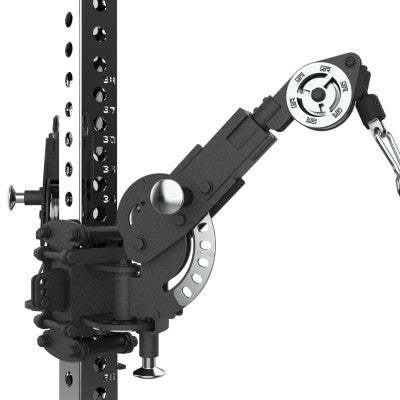

  • HIGH-QUALITY FINISHES & DETAILS

    Chrome uprights where trolleys are used means less wear and scratches to your upright as you adjust the position of the trolley up and down. Our plate sleeves are also chrome with a rubber stopper which eliminates the potential of scratches and chips seen on cheaper, powder-coated plate sleeves. RX3 Sandwich J-Cups feature stainless steel logo plates with an oversized racking area, making it easier for lifters to re-rack their barbell into the intended racking area. All components and attachments were designed in more detail.

  • Exceptional Construction

    Logos are bolted on with stainless steel nameplates on 95% of attachments, while a few are laser-cut. No stickers are used in any of our RX3 designs. Take a look at our Stainless Steel Logo Plate - we've gone the extra mile by laser-cutting triangular designs into the nameplate, further enhancing its standout appearance that is representative of the pinnacle of quality seen on the RX3 series.

  • In-House Precision Manufacturing

    We've upgraded our manufacturing and the first thing we wanted to offer is the RX3 line. 6-Axis Laser cutting, CNC Lathe, robotic welding, friction welding, hydraulic servo bending, shot blasting, and powder coating all in the same facility for a consistent and high-quality product. We've even brought in a hardware packing machine to blister pack all hardware in-house.

  • Continuing Innovation

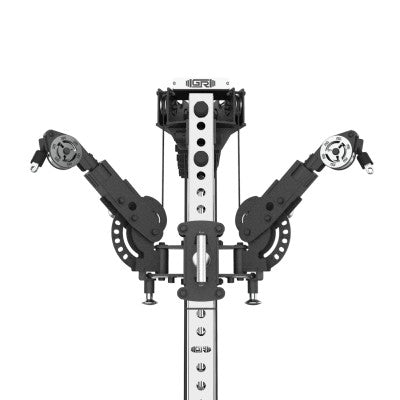

    We didn't stop at designing just high quality standard attachments like j-cups and spotter arms; our cable trolley systems are the best in the market. We changed the game with our patent-pending Tornado Pivot Arms and now bring them to you in cable tower configuration. All Cable machines include 2x black, aluminum anodized, knurled handles that are the best standard handles we've seen in the industry. Our product development team meets biweekly to design innovative attachments and solutions for our RX3 series. Stay tuned for more innovative, multifunctional, and high-quality attachments for the RX3 series!

FAQ

Who is this unit for?

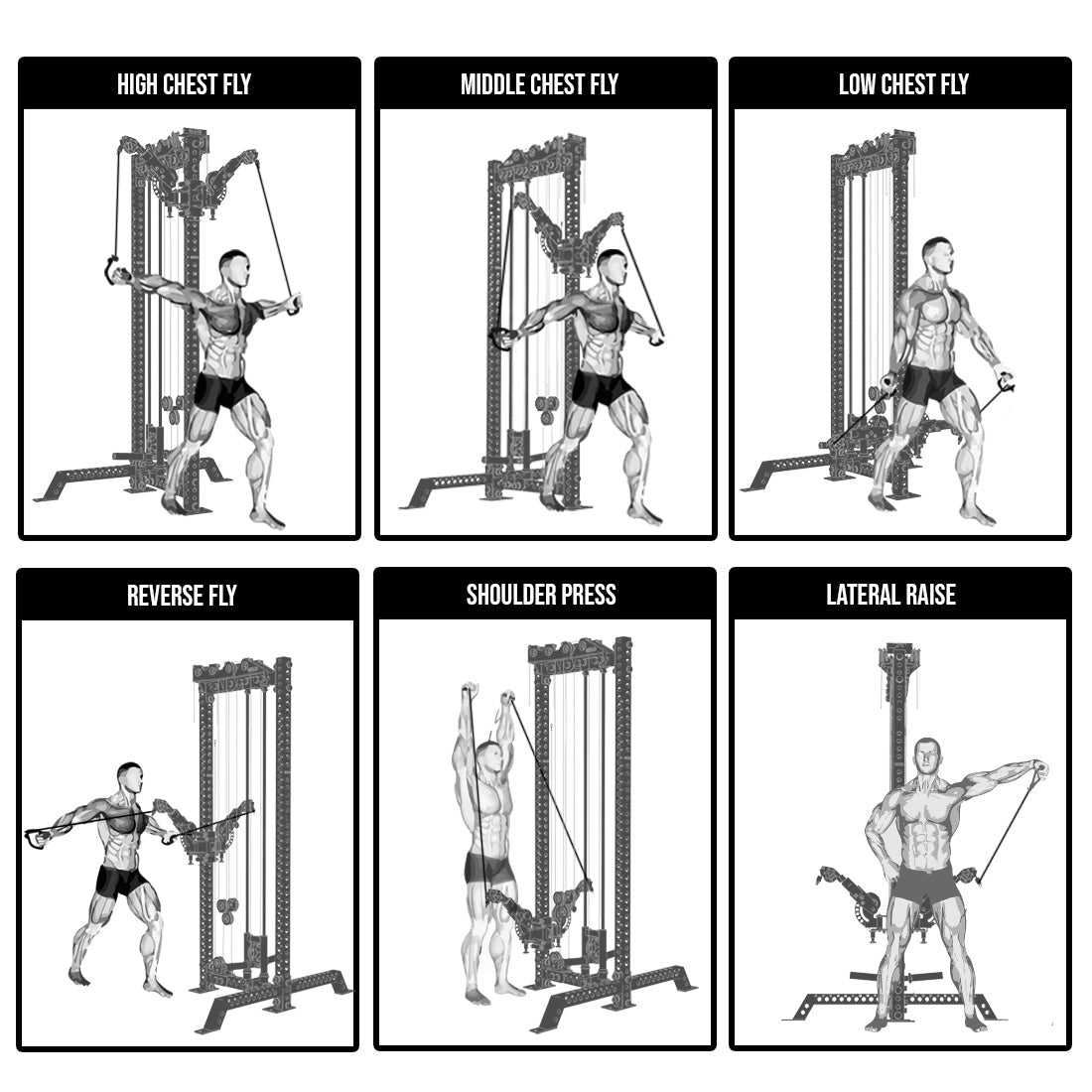

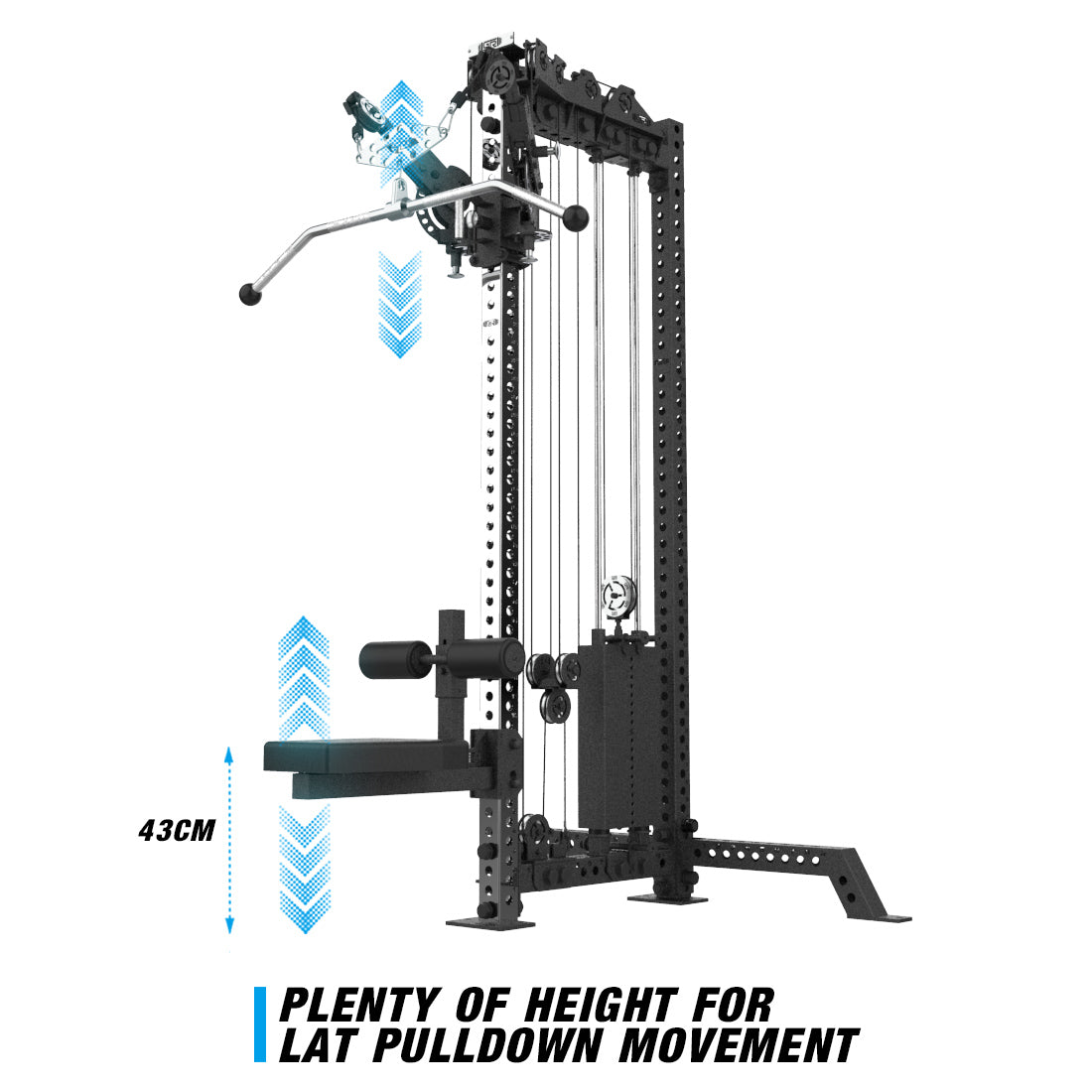

The Phoenix Cable Tower is for those who want more versatility out of a cable tower footprint. The Dual Tornado Arms allow you to position them higher for full stretch during lat pulls or out wide for chest fly. You can do nearly any cable movement with the Phoenix Cable Tower because of the ability to position the Dual Tornado Arms nearly anywhere. Further, you have the ability to do 1:1 ratio up to 200 LBS as well as 2:1 ratio for 5LB increments and longer cable travel, plus want the modularity and attachment options of something that is 3"x3" with 1" pin holes at 2" spacing. The 2 handle design makes this unit extremely versatile as you can perform 1-handed exercises as well as 2-handed exercises in one, space-saving unit.

Do I need to bolt this into the ground?

If you do not wish to bolt into the ground, we suggest weighing it down with 2x Plate Sleeves and weight plates off the back upright. With plate sleeves and standard sized bumpers, you'd need to skip assembly of the resistance band attachment that comes included with the weight stack. Another option is to add the RX3 stabilizers which will add further stability. If you do not use 2x plate sleeves with weight plates nor the RX3 stabilizers, we recommend bolting into the ground for safety and liability.

What other attachments are available?

This unit is 3"x3" with 1" holes and 2" spacing, so there's are a wide variety of attachments from us and others available for this specification. We recommend using the following attachments: lat pull low row pad combined with the Center Post to extend your range of motion when doing flexion rows, as well as the Optimus Pad, and the FT Cable Output Adapter to unlock even more training possibilities. You can also add the RX3 stabilizers if you don't wish to bolt into the ground. Our design team meets biweekly and are currently working on a broad range of attachments which will be added to our RX3 attachments page as we develop more and more.

How do I add 2.5LB increments or add more weight to the 200LB stack?

You can utilize our Weight Stack Plate Load Pin, a 2.5LB attachment that inserts into the weight stack and allows you to increase weight by 2.5LBs (with 1:1 weight ratio) or 1.25LBs (with 2:1 weight ratio) as well as add more weight to the 200LB stack.

What is the benefit of a Cable Tower functional trainer?

Cable Tower functional trainers take up less space and offer more bang for your buck. Because of our dual handle design, you can still do many 2-handed exercises as well as 1-handed exercises, in nearly half the space and less cost!

Can I attach the Phoenix Cable Tower to my existing rack?

Yes. The Phoenix Cable Tower can be mounted to a compatible 3"x3" rack by using two RX3 crossbars.

Here’s how it’s typically done:

  • Position the tower to the side of your rack.
  • Connect it using two RX3 Crossbars. The 26" Crossbar is the most space-efficient option and still provides enough room for barbell loading.
  • You can also use the 42" Crossbar if you prefer extra clearance between the rack and the tower.

Once attached, the rack provides the stability needed, and the Phoenix functions as an integrated extension of your setup. Because the tower becomes structurally connected to your rack, you won’t need to bolt it into the floor or use the optional RX3 Stabilizers, as the rack provides stability.

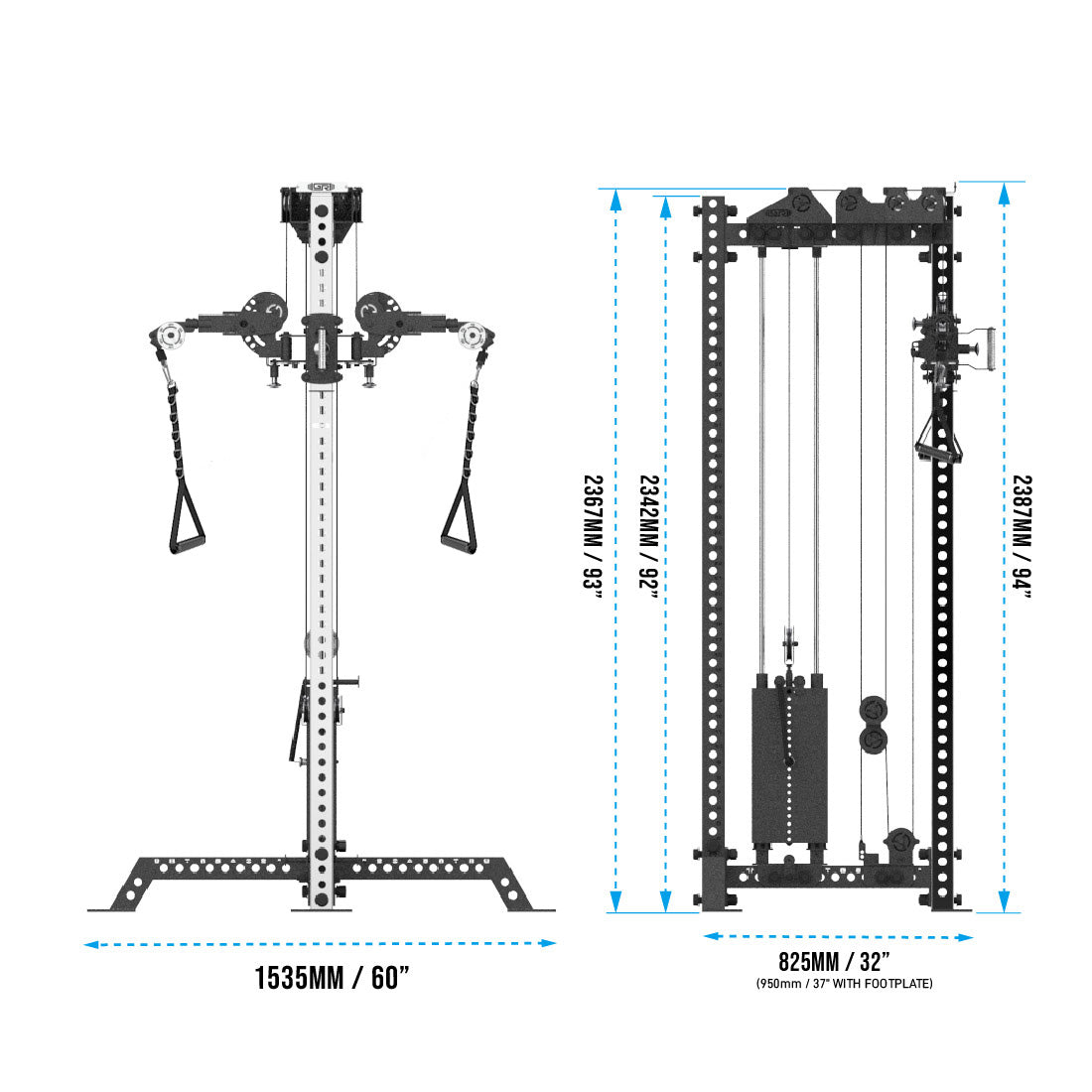

RX3 PHOENIX SPECS

BENEFITS OF THE PHOENIX CABLE TOWER
。Dual Tornado Arms allow for greater versatility across all movements
。3" x 3" tubing with 1" pin holes at 2" spacing for a large variety of attachment options
。Weight Range: Start at 10LBs with 5LB increments (single handle) all the way up to 200LBs (dual handle)
。Less Wear: Chrome Uprights and Aluminum Pulleys
。Convenience: Aluminum Anodized pop pin with a stainless Steel knurled handle on trolley makes adjustments easy

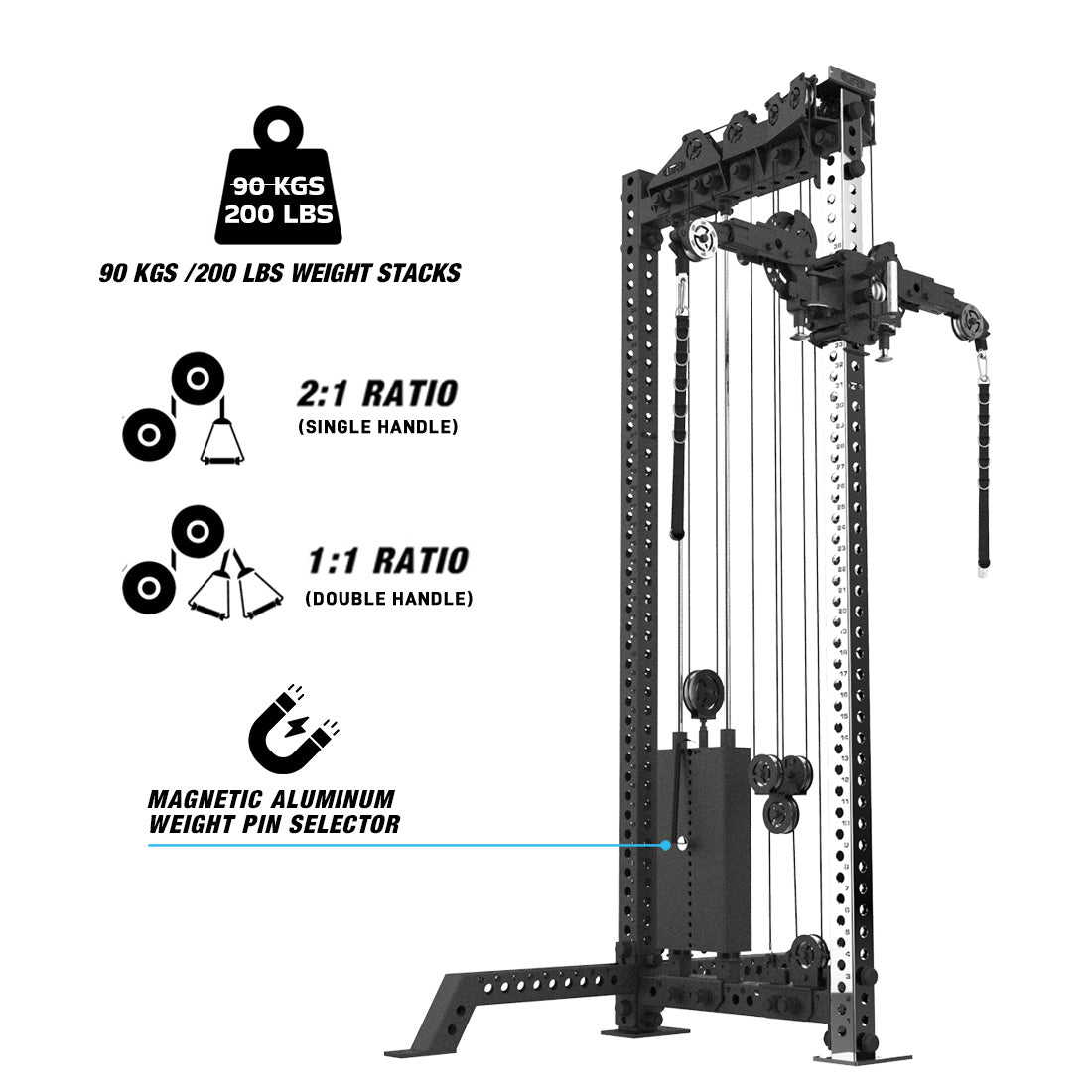

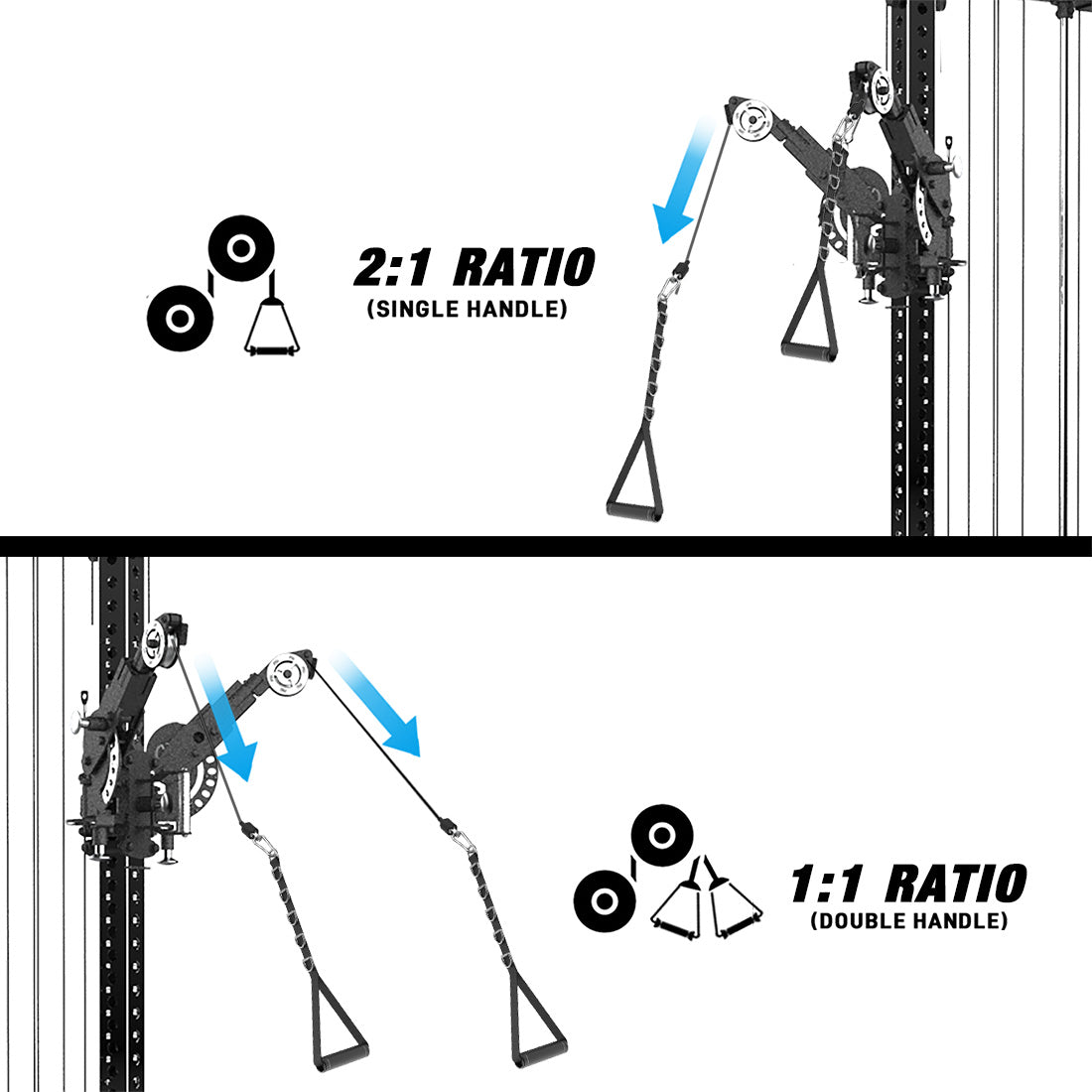

WEIGHT RATIO: 1:1 with dual Tornado, 2:1 with single Tornado

STARTING WEIGHT PER SINGLE TORNADO ARM: 10LBs with 5 LB increments

STARTING WEIGHT PER DUAL TORNADO ARM: 20LBs with 10 LB increments

WEIGHT STACK: 200 LBS

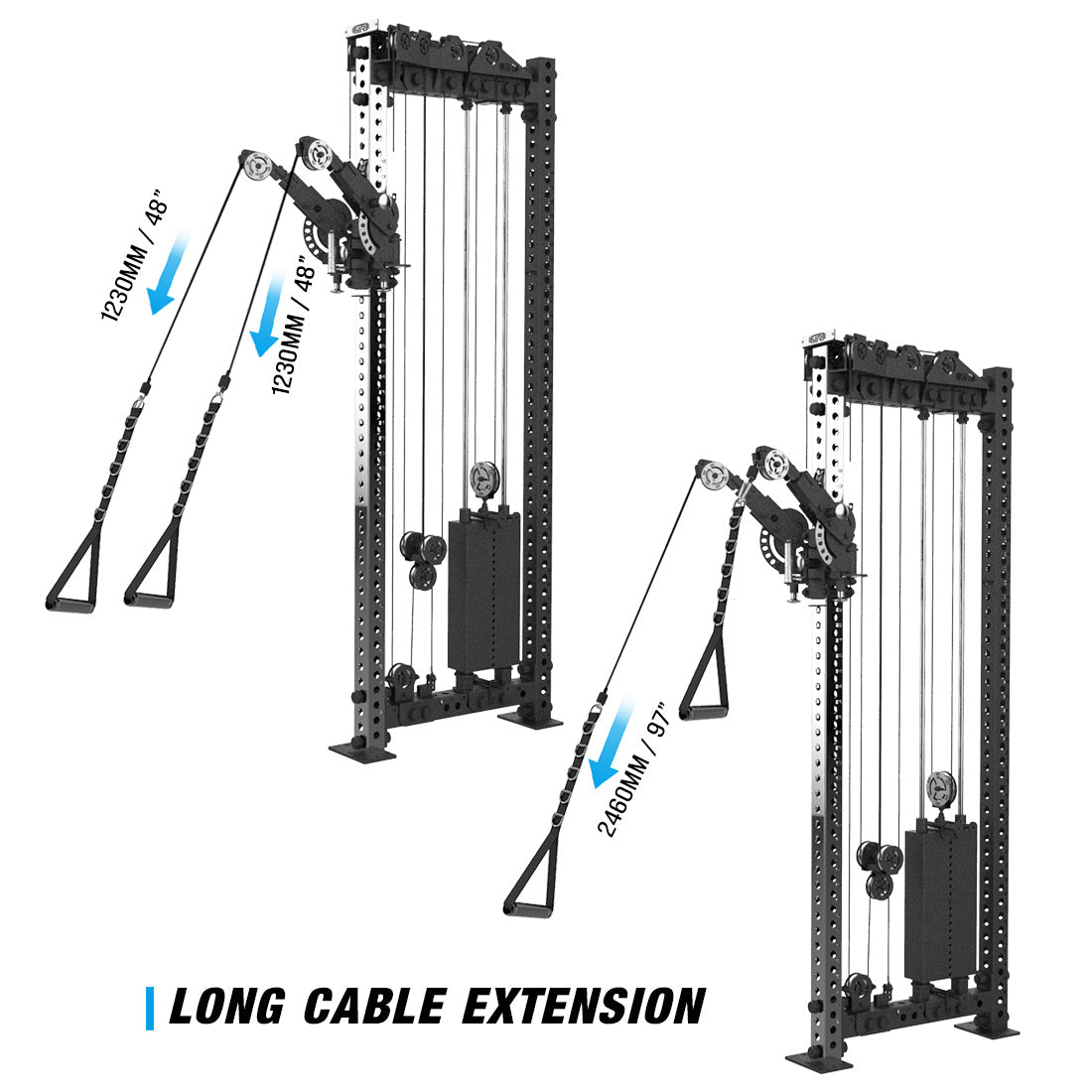

CABLE TRAVEL (SINGLE TORNADO ARM): 97"

CABLE TRAVEL (DUAL TORNADO ARM): 48"

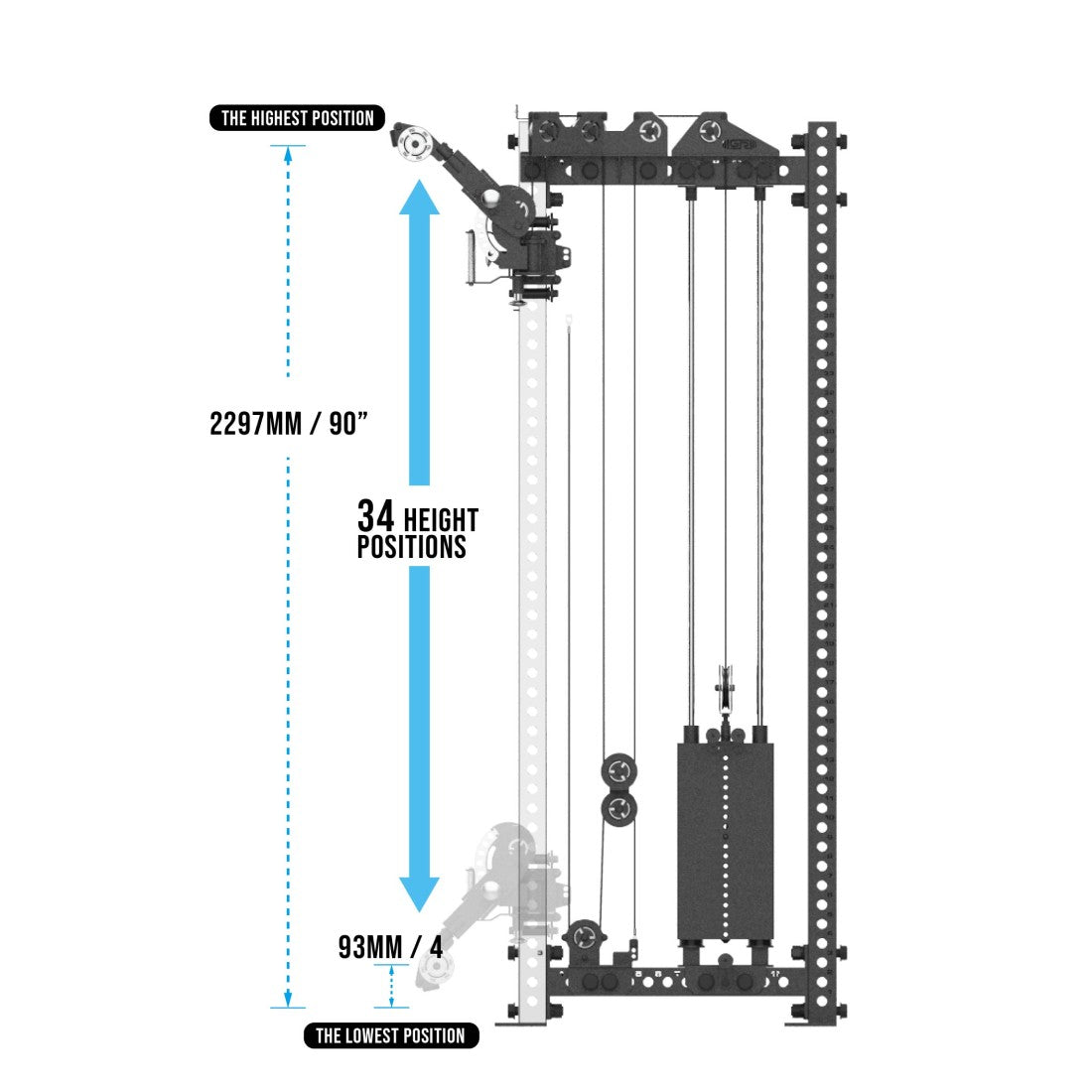

TOTAL TROLLEY POSITIONS: 34 positions spaced 2" apart

TROLLEY LOWEST ADJUSTMENT POINT: 4"

TROLLEY HIGHEST ADJUSTMENT POINT: 90"

TROLLEY SPACING: 2"

CABLE MATERIAL: Aircraft Grade Nylon Cables

TRAINER HANDLES: Black, aluminum anodized handles with knurling

PULLEYS: Aluminum

HARDWARE: Black, e-coat 1" hardware
